Electric motorcycles work by using electrical energy stored in batteries to power an electric motor, which converts electricity into mechanical energy to drive the wheels. Learn how do electric motorcycles work and their key components in details.
Key Takeaways
- Unlike traditional fuel-powered motorcycles, electric motorcycles use energy stored in batteries, resulting in quieter operation and zero tailpipe emissions.
- Since electric motors deliver power instantly, the acceleration is smooth and responsive.
- The controller determines how much energy from the battery is transferred to the motor, which is why it’s important.
- A battery management system ensures safety while charging an electric motorcycle using a special charger.
- Maintenance is usually easier because there are no combustion processes and fewer moving parts.
How to electric motorcycle works? In simple terms, electric motorcycles convert electrical energy stored in a battery into mechanical power through an electric motor, which directly drives the wheels. The process starts from the battery deliver electrical energy to the controller, then the current will be channeled further to the electric motor to turn the wheels. This mechanism generally doesn't require fuel combustion like conventional motorcycles, so electric motorcycles are much quieter, more efficient, and environmentally friendly. For this reason, electric motorcycles are often predicted as a promising vehicle focused on sustainability for the future. To fully understand how do electric motorcycles work, this article explains their definition, key components, working principles, charging process, and how they compare to gas-powered motorcycles.
What is an Electric Motorcycle?
An electric motorcycle is a modern two-wheeled vehicle powered by electricity stored in rechargeable batteries rather than fossil fuels such as gasoline or diesel. When the motorcycle is turned on, electrical energy from the battery is delivered to an electric motor, which converts it into mechanical power to drive the wheels. Because electric motorcycles do not rely on a combustion process, they operate more quietly and produce significantly lower emissions compared to traditional gas-powered motorcycles. As a result, electric motorcycles offer several practical and environmental advantages. Electric motorcycles are very reliable for daily mobility ranging from short to medium distances. Helps reduce gas emissions that are increasing over time. Electric motorcycles are known for their energy efficiency and lower maintenance costs compared to gas-powered motorcycles. With smooth acceleration and minimal operating noise, electric motorcycles provide a more comfortable and enjoyable riding experience. Supporting eco-friendly and sustainable mobility in the modern era.

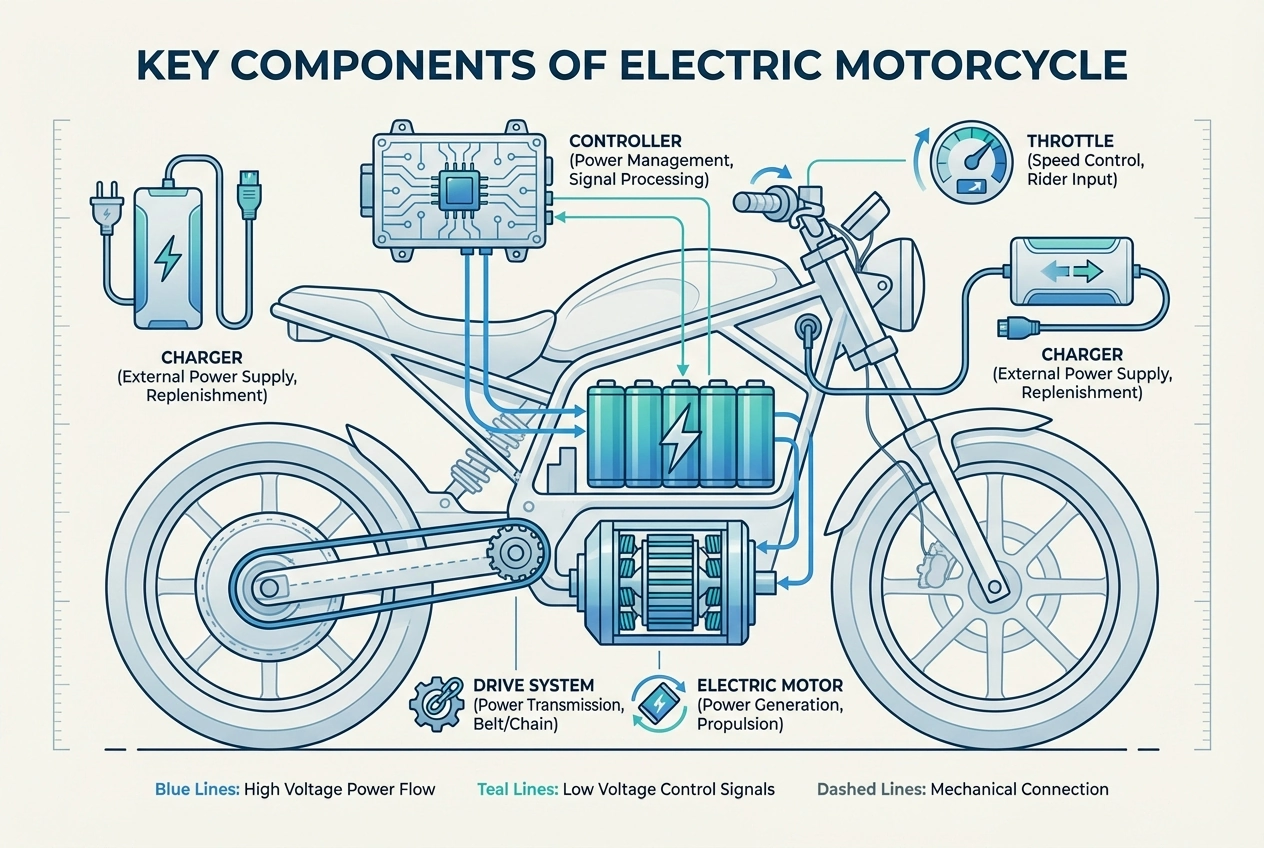

Key Components of Electric Motorcycle
Electric motorcycles consist of several key components that work together to deliver power efficiently and ensure stable performance. Below are the main components that enable an electric motorcycle to operate effectively.
Battery Pack
The battery pack is the primary power source of an electric motorcycle, storing electrical energy that is used to power the electric motor. Most electric motorcycles use lithium-ion batteries because they’re lightweight, offer high energy capacity, and have a long service life.
Electric Motor
The electric motor converts electrical energy into mechanical motion. It is the core component responsible for generating torque and enabling the motorcycle’s wheels to rotate during operation.
Controller
The controller is a core component of an electric motorcycle, acting as the brain of the electrical system. It regulates the flow of electricity from the battery to the electric motor based on throttle input, ensuring smooth acceleration and precise speed control.
Throttle
The throttle allows the rider to control the motorcycle’s speed. When the throttle is engaged, it sends a signal to the controller, which then adjusts the amount of power delivered from the battery to the electric motor.
Drive System
The drive system transmits power from the electric motor to the motorcycle’s wheels. Depending on the design, this able to be achieved using a chain drive, belt drive, or an integrated hub motor.
Charger
The charger is an important component of the electric motorcycle's electrical system because it functions as a battery recharging device. This component will convert the electric current flow from an external energy source into a current that matches the specifications of the battery on the electric motorcycle.
Battery Management System (BMS)
The Battery Management System (BMS) plays a critical role in an electric motorcycle’s electrical system by monitoring and controlling key battery parameters such as voltage, temperature, and charging status. Its primary function is to ensure battery safety, efficiency, and long-term durability.
Cooling System
In electric motorcycles, the cooling system is essential for maintaining stable operating temperatures for both the battery and the electric motor, helping preserve component lifespan and overall performance.
How Do Electric Motorcycles Work? Step-by-Step Explanation
Electric motorcycles operate through a relatively simple and efficient process. They work by converting electrical energy stored in batteries directly into mechanical energy, without relying on a combustion process like conventional motorcycles. Below is a step-by-step explanation of how an electric motorcycle works. First of all, when the rider tries to start the electric motorcycle by turning the throttle, an electronic signal will be sent to the controller to determine the amount of initial electrical energy required. Next, the controller will regulate how much electrical energy the battery needs to supply to the electric motor–according to how far the throttle is turned. Then, the electrical energy will be channeled from the battery to the electric motor and is ready to be converted into mechanical power. Once the electric motor receives sufficient power, electrical energy is converted into mechanical rotation through electromagnetic interaction. This process generates torque, allowing the motorcycle’s wheels to move. During operation, the power generated by the electric motor will be continuously transmitted to the wheels through the drive system–such as a chain, belt, or hub motor. Thus, the electric motorcycle is able to move and accelerate. While the electric motorcycle is being used for mobility, the controller will continuously adjust the required electricity flow according to the throttle input. Then, the BMS will always monitor every battery parameter to ensure the system works safely and efficiently. Generally, electric motorcycle systems also include a system called regenerative braking. When the rider brakes, some of the mechanical energy will be converted back into electrical energy and stored in the battery. Then, when the vehicle is turned off, the controller stops the electricity from the battery to the electric motor and the electric motorcycle stops.
How Does an Electric Motorcycle Motor Convert Energy?
Generally, the electric motor in an electric motorcycle converts electrical energy into motion through electromagnetic principles. This process occurs when electric current flows from the battery to the motor, creating a magnetic field inside it. The interaction between this magnetic field and internal coils or magnets generates a rotating force, known as torque. This torque rotation is what finally makes the motor shaft rotate. Once the motor shaft has rotated, the power generated will be passed on to the drive system - such as a chain, belt, or hub motor–to turn the electric motorcycle's wheels. This process will continue while the electric motorcycle is being used for riding. The greater the electric current delivered by the battery, the greater the electric motorcycle's power and speed because the magnetic field formed in the electric motor is stronger.
Electric Motorcycle vs Gas-Powered Motorcycle Comparison Table
From a rider’s perspective, although electric and gas-powered motorcycles serve the same purpose for daily transportation, they differ significantly in how they generate power, perform, and impact the environment. The following comparison highlights the key differences between electric motorcycles and gas-powered motorcycles.
Charging Process: How Electric Motorcycles Recharged?
The charging process is one of the most important aspects of owning an electric motorcycle. Although charging seems simple, it involves several steps and requires careful attention to ensure battery safety and long-term performance. When the charger is connected to an external power source and the motorcycle’s charging port, it adjusts the current flow according to the battery’s specifications. During charging, the BMS will carefully control the battery condition to prevent overheating, overcharging, or damage to the battery. The battery charging process is divided into multiple stages. In the initial stage, typically between 20% and 80% capacity, a higher current is used to charge the battery quickly. Once the charge level exceeds 80%, the charging current is automatically reduced to ensure safety and protect battery health. When the battery is fully charged, the system automatically stop the electricity flow to protect the battery from damage. Once charging is complete and the charger has been carefully removed, the electric motorcycle is ready to be used to continue mobility.
Conclusion
In conclusion, electric motorcycles operate through a simple yet highly efficient process in which electrical energy stored in the battery is converted into mechanical energy by the electric motor to drive the wheels. The entire operating process–from power regulation by the controller to battery charging managed by the BMS–allows electric motorcycles to deliver smooth, quiet, and environmentally friendly performance. With low operational and maintenance costs, combined with zero gas emissions, electric motorcycles are a relevant transportation option in the modern era. By clearly understanding how do electric motorcycles work and the charging process, users are able to determine whether or not this vehicle is suitable for their daily needs.
FAQs
How do electric motorcycles accelerate without gears?
Electric motorcycles basically work by generating instant torque, so it doesn't require gear shifting to accelerate.
Can electric motorcycles be charged at home?
Yes, your electric motorcycle can be charged at home as long as the process is done using the manufacturer's built-in charger to prevent battery damage from occurring sooner.
How efficient are electric motorcycles compared to cars?
Electric motorcycles are certainly more efficient, because aside from having a slim and lightweight body, they require less energy than cars.
What role does regenerative braking play in electric motorcycles?
Regenerative braking has the role of converting braking energy into electricity again and then channeling it to the battery for storage.
How long do electric motorcycle batteries last?
Electric motorcycle batteries generally last around 5 to 8 years, but the estimation depends on how it's used and maintained.
Do electric motorcycles require oil changes?
No, because electric motorcycles not powered by a combustion engine, so they don't require engine oil changes.
Are electric motorcycles safe in the rain?
Yes, it's safe to use an electric motorcycle in rainy weather, as its internal components are protected by a waterproof system. However, ensure to use the electric motorcycle in accordance with the manufacturer's standards.
How much does it cost to charge an electric motorcycle?
The cost of charging an electric motorcycle is relatively cheap, but the cost will vary according to the capacity and electricity cost.
How far can an electric motorcycle go on a single charge?
Electric motorcycles are able to be used for about 60-150 km on a single charge, but the distance depends on the battery capacity, riding style, and road conditions.
